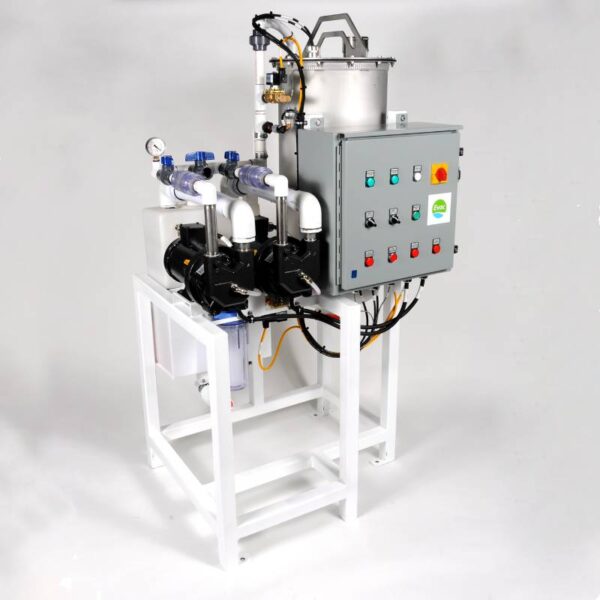

Horizon JR | L220


  • Generates vacuum throughout vacuum piping network
  • Collects waste water from collection points (Lifts/Risers)
  • Discharges collected waste water to building sewer system
SKU: 2900455 Categories: ,


The Evac Horizon System uses differential air pressure to transport waste water upward, to the overhead piping network, unlike the conventional gravity flow of underground drainage piping.

Vacuum is generated by (2) 2HP liquid-ring pumps in the collection tanks and throughout the entire vacuum piping network. Waste water is collected and held in (1) 40-gallon tank, then later discharged at a predetermined volume, to the building sewer system.

Power Options: 460V | 230V | 208V
